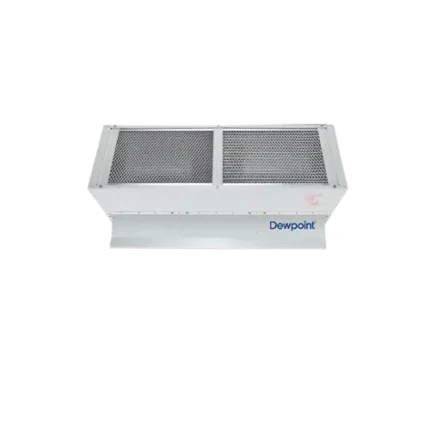

Daikin Dewpoint Turbo Air Curtain
The Daikin Dewpoint Turbo Air Curtain is a high-volume doorway air barrier for demanding commercial and industrial entrances. Its higher airflow is intended for factories, warehouses, loading areas, cold rooms, high-ceiling malls and other large entrances where a standard air curtain may not provide sufficient reach. Select an available option below.
Description
The Daikin Dewpoint Turbo Air Curtain is a high-volume doorway air barrier for demanding commercial and industrial entrances. It delivers a concentrated air stream that helps retain cooled air and reduce the entry of warm air, dust, fumes and odours while keeping the doorway physically open.
Its higher airflow is intended for factories, warehouses, loading areas, cold rooms, high-ceiling malls and other large entrances where a standard air curtain may not provide sufficient reach.
Key features
- High-volume airflow supports wider or more demanding doorway applications.
- An external-rotor motor and sirocco fan produce a concentrated air stream.
- The invisible air barrier reduces conditioned-air escape and outside-air infiltration.
- It helps limit dust, fumes and odours without interrupting pedestrian or material movement.
- Two model sizes provide 2,366 cfm or 3,567 cfm airflow selections.
Series details
| System type | Turbo high-volume doorway air curtain |
|---|---|
| Refrigerant | Not applicable |
| Capacity / airflow range | 2,366 to 3,567 cfm |
| Control | Local air-curtain control; confirm site control requirements |
Available models
| Air Volume | Indoor / unit model | Outdoor model | Rated cooling capacity | Wi-Fi control |
|---|---|---|---|---|
| 2366cfm | DAC320A | — | — | No |
| 3567cfm | DAC420A | — | — | No |
Selection note: Choose the airflow and cabinet width appropriate for the opening. A qualified installer should verify mounting height, doorway width, wind exposure, structural support and site electrical requirements.
Specifications are based on the supplied Daikin product list and the official series information available at the time of preparation. Confirm final specifications before ordering.
