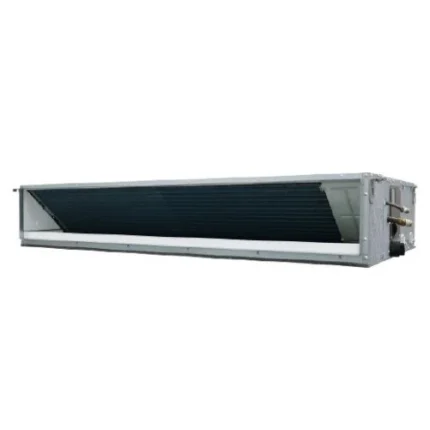

Daikin FDBC-A/FDMC-A Series R32 Non-Inverter Ceiling Concealed Air Conditioner
$0.00
The Daikin FDBC-A/FDMC-A Series is an R32 non-inverter ceiling-concealed range for ducted light-commercial cooling. Low- and middle-static configurations support offices, shops, restaurants, hotels and other spaces that need discreet, distributed airflow. Select an available option below.
Description
The Daikin FDBC-A/FDMC-A Series is an R32 non-inverter ceiling-concealed range for ducted light-commercial cooling. The indoor unit is hidden above the ceiling, allowing supply and return grilles to be positioned to suit the room layout while maintaining a clean interior appearance.
Low- and middle-static configurations support offices, shops, restaurants, hotels and other spaces that need discreet, distributed airflow.
Key features
- Rear-return and bottom-return conversion gives installers flexibility when arranging the return-air path.
- Quiet blow-through construction supports unobtrusive operation above the ceiling.
- FDMC models use a low 250 mm indoor-unit height to suit restricted ceiling voids.
- Service access is arranged for easier routine inspection and maintenance.
- Blue-fin heat-exchanger protection improves outdoor-unit corrosion resistance.
Series details
| System type | Ceiling-concealed ducted, non-inverter split system |
|---|---|
| Refrigerant | R32 |
| Capacity / airflow range | 12,000 to 55,000 Btu/h |
| Control | Wired controller typically selected to suit the ducted installation |
Available models
| Horsepower | Indoor / unit model | Outdoor model | Rated cooling capacity | Wi-Fi control |
|---|---|---|---|---|
| 1.5HP | FDBC35AV1M | RC35BV1M | 12,000 Btu/h | No |
| 2.0HP | FDMC50AV1M | RC50BV1M | — | No |
| 2.5HP | FDMC60AV1M | RC60BV1M | — | No |
| 3.0HP | FDMC85AV1M | RC85BV1M | 29,500 Btu/h | No |
| 3.5HP | FDMC100AV1M | RC100BV1M | 36,000 Btu/h | No |
| 4.0HP | FDMC125AV1M | RC125BY1M | 42,000 Btu/h | No |
| 5.0HP | FDMC140AV1M | RC140BY1M | 46,000 Btu/h | No |
| 6.0HP | FDMC160AV1M | RC160BY1M | 55,000 Btu/h | No |
Selection note: Choose the listed indoor/outdoor combination and horsepower. Duct design, external static pressure, return-air arrangement, drainage and capacity must be confirmed by a qualified HVAC installer.
Specifications are based on the supplied Daikin product list and the official series information available at the time of preparation. Confirm final specifications before ordering.
