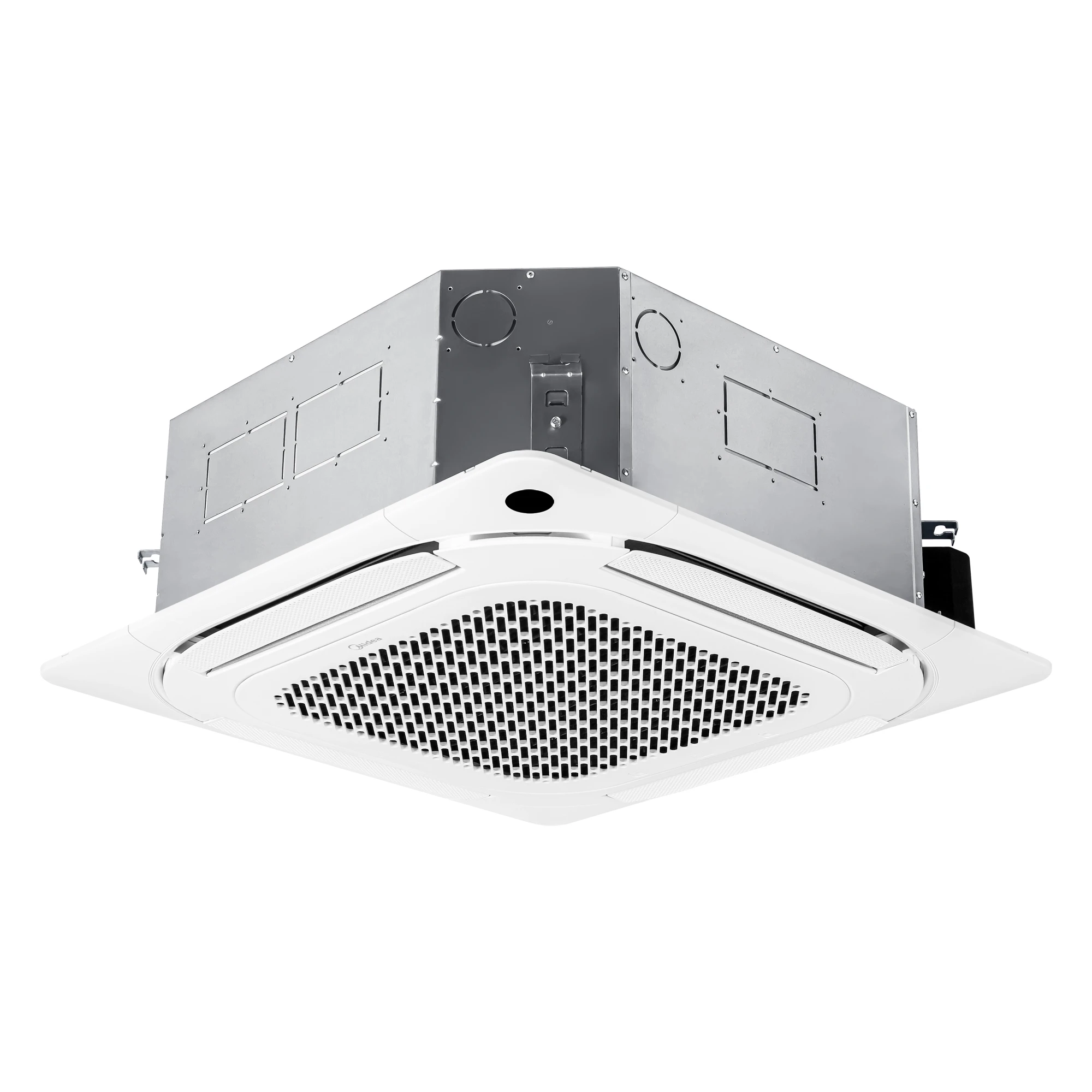

Midea MCX Series Full DC R32 Inverter Ceiling Cassette Air Conditioner
$0.00
The Midea MCX Series is a premium Full DC R32 inverter ceiling cassette range designed for responsive, even cooling in commercial and premium interior spaces. It is suitable for offices, restaurants, branded retail spaces, showrooms and other interiors where connected control, softened airflow and a clean ceiling appearance are priorities. Select an available option below.
Description
The Midea MCX Series is a premium Full DC R32 inverter ceiling cassette range designed for responsive, even cooling in commercial and premium interior spaces. Its recessed ceiling format keeps walls and floors open, while individual airflow control supports different comfort needs around the room.
It is suitable for offices, restaurants, branded retail spaces, showrooms and other interiors where connected control, softened airflow and a clean ceiling appearance are priorities.
Key features
- Power Breezeless technology and 360-degree round flow distribute conditioned air widely while reducing direct drafts.
- Individual vane control allows the discharge direction to be adjusted for different zones around the cassette.
- Full DC inverter operation modulates output to provide fast pull-down, stable temperature and efficient part-load performance.
- Built-in SmartHome Wi-Fi control enables convenient operation through the compatible app.
- A super-slim body, built-in drain pump, fresh-air provision and HYPER GRAPFINS support installation and durability.
Series details
| System type | Premium 360-degree ceiling cassette split system |
|---|---|
| Compressor operation | Full DC inverter |
| Refrigerant | R32 |
| Nominal capacity range | 12,000 to 48,000 Btu/h |
| Control | Built-in SmartHome Wi-Fi control |
Available models
| Horsepower | Indoor model | Outdoor model | Nominal cooling capacity | Power supply | Wi-Fi control |
|---|---|---|---|---|---|
| 1.5HP | MCX-12CRFNX | MOUX-12CFN8 | 12,000 Btu/h | 220-240 V, single-phase, 50 Hz | Yes |
| 2.0HP | MCX-24CRFNX | MOUX-18CFN8 | 18,000 Btu/h | 220-240 V, single-phase, 50 Hz | Yes |
| 2.5HP | MCX-24CRFNX | MOUX-24CFN8 | 24,000 Btu/h | 220-240 V, single-phase, 50 Hz | Yes |
| 3.0HP | MCX-30CRFNX | MOUX-30CFN8 | 30,000 Btu/h | 220-240 V, single-phase, 50 Hz | Yes |
| 4.0HP | MCX-36CRFNX | MOUX-36CFN8 | 36,000 Btu/h | 220-240 V, single-phase, 50 Hz | Yes |
| 4.0HP | MCX-40CRFNX | MOUX-40CFN8 | 36,000 Btu/h | 380-415 V, 3-phase, 50 Hz | Yes |
| 4.5HP | MCX-42CRFNX | MOUX-42CFN8 | 42,000 Btu/h | 220-240 V, single-phase, 50 Hz | Yes |
| 5.0HP | MCX-48CRFNX | MOUX-48CFN8 | 48,000 Btu/h | 380-415 V, 3-phase, 50 Hz | Yes |
Selection note: Select the horsepower, outdoor unit and electrical phase that match the project. Have a qualified installer confirm the cassette panel, ceiling opening, condensate route, piping, power supply and SmartHome commissioning.
Specifications are based on the supplied Midea project list, official Midea product pages and the supplied Midea catalogue. Confirm the final current specification before ordering or installation.
