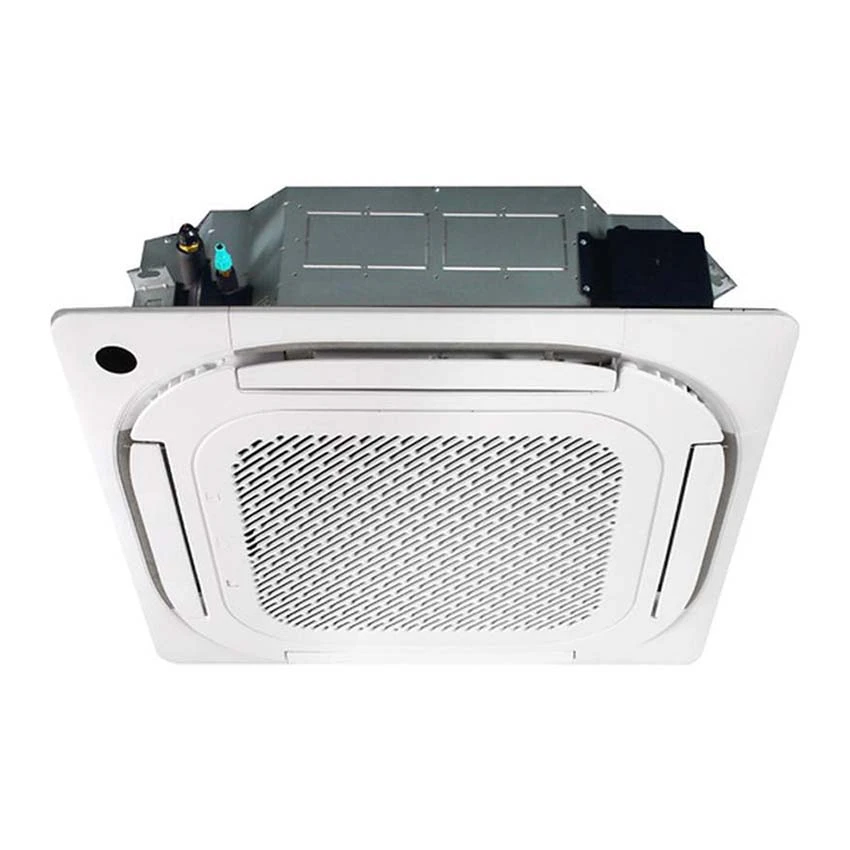

Midea MCCD Series R32 Inverter Ceiling Cassette Air Conditioner
$0.00
The Midea MCCD Series is an R32 standard-inverter ceiling cassette range for light-commercial interiors that need efficient capacity control and balanced room coverage. The series combines inverter operation with round-flow air distribution, a slim chassis and service-friendly condensate management. Select an available option below.
Description
The Midea MCCD Series is an R32 standard-inverter ceiling cassette range for light-commercial interiors that need efficient capacity control and balanced room coverage. Its ceiling-integrated installation keeps walls clear and suits offices, shops, clinics, training rooms, restaurants and other customer-facing spaces.
The series combines inverter operation with round-flow air distribution, a slim chassis and service-friendly condensate management.
Key features
- Inverter capacity control adjusts output as the room load changes for steadier comfort and efficient part-load performance.
- A 360-degree round-flow outlet distributes air around the occupied area and reduces concentrated drafts.
- Power Breezeless wind deflectors use thousands of micro-holes to soften direct airflow.
- The restructured WindTrack drain-pump position allows faster service access after removing the ceiling panel.
- Super-slim construction, fresh-air provision and protected heat-exchanger coatings support practical commercial installation.
Series details
| System type | 360-degree ceiling cassette split system |
|---|---|
| Compressor operation | Standard inverter |
| Refrigerant | R32 |
| Nominal capacity range | 19,000 to 48,000 Btu/h |
| Control | Controller selected for the installation; no built-in Wi-Fi listed |
Available models
| Horsepower | Indoor model | Outdoor model | Nominal cooling capacity | Power supply | Wi-Fi control |
|---|---|---|---|---|---|
| 2.0HP | MCCD-20CRDN8 | MODX-20CFN8 | 19,000 Btu/h | 220-240 V, single-phase, 50 Hz | No |
| 2.5HP | MCCD-25CRDN8 | MODX-25CFN8 | 24,000 Btu/h | 220-240 V, single-phase, 50 Hz | No |
| 3.5HP | MCCD-33CRDN8 | MODX-33CFN8 | 33,000 Btu/h | 220-240 V, single-phase, 50 Hz | No |
| 4.0HP | MCCD-40CRDN8 | MODX-40CFN8 | 36,000 Btu/h | 380-415 V, 3-phase, 50 Hz | No |
| 5.0HP | MCCD-50CRDN8 | MODX-50CFN8 | 48,000 Btu/h | 380-415 V, 3-phase, 50 Hz | No |
Selection note: Choose the horsepower and paired indoor/outdoor models for the calculated load. Ceiling space, cassette panel, drainage, piping and electrical phase should be confirmed by a qualified installer before ordering.
Specifications are based on the supplied Midea project list, official Midea product pages and the supplied Midea catalogue. Confirm the final current specification before ordering or installation.
