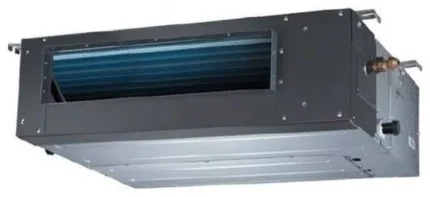

Midea MTI Series R410A Non-Inverter Ceiling Concealed Air Conditioner
$0.00
The Midea MTI Series R410A non-inverter ceiling-concealed range provides fixed-speed ducted cooling while keeping the indoor unit out of sight above the ceiling. The series is intended for professionally designed duct systems that need accessible condensate handling, protected heat exchangers and a compact concealed chassis. Select an available option below.
Description
The Midea MTI Series R410A non-inverter ceiling-concealed range provides fixed-speed ducted cooling while keeping the indoor unit out of sight above the ceiling. Supply and return grilles can be arranged to suit the room, creating a clean appearance for offices, shops, restaurants and other commercial interiors.
The series is intended for professionally designed duct systems that need accessible condensate handling, protected heat exchangers and a compact concealed chassis.
Key features
- A built-in drain pump can lift condensate by up to 750 mm for flexible drain routing.
- PrimeGuard anti-corrosion coating protects heat-exchanger surfaces against moisture and corrosive elements.
- The lightweight, compact A6 indoor unit reduces ceiling-space and installation effort.
- External static pressure up to 160 Pa supports various duct configurations when correctly engineered.
- Side service access improves maintainability after the indoor unit is concealed above the ceiling.
Series details
| System type | Ceiling-concealed ducted split system |
|---|---|
| Compressor operation | Non-inverter |
| Refrigerant | R410A |
| Nominal capacity range | 18,000 to 60,000 Btu/h |
| Control | Wired controller selected to suit the ducted installation; no built-in Wi-Fi |
Available models
| Horsepower | Indoor model | Outdoor model | Nominal cooling capacity | Power supply | Wi-Fi control |
|---|---|---|---|---|---|
| 2.0HP | MTI-18HRN1 | MOU-18HN1 | 18,000 Btu/h | 220-240 V, single-phase, 50 Hz | No |
| 2.5HP | MTI-24HRN1 | MOU-24HN1 | 24,000 Btu/h | 220-240 V, single-phase, 50 Hz | No |
| 4.0HP | MTI-36HRN1 | MOU-36HN1 | 36,000 Btu/h | 380-415 V, 3-phase, 50 Hz | No |
| 5.0HP | MTI-48HRN1 | MOU-48HN1 | 48,000 Btu/h | 380-415 V, 3-phase, 50 Hz | No |
| 6.0HP | MTI-60HRN1 | MOU-60HN1 | 60,000 Btu/h | 380-415 V, 3-phase, 50 Hz | No |
Selection note: Select the listed horsepower and model pair for the designed cooling load. Duct sizing, external static pressure, access panels, drainage, refrigerant piping and electrical phase must be confirmed by a qualified HVAC installer.
Specifications are based on the supplied Midea project list, official Midea product pages and the supplied Midea catalogue. Confirm the final current specification before ordering or installation.
