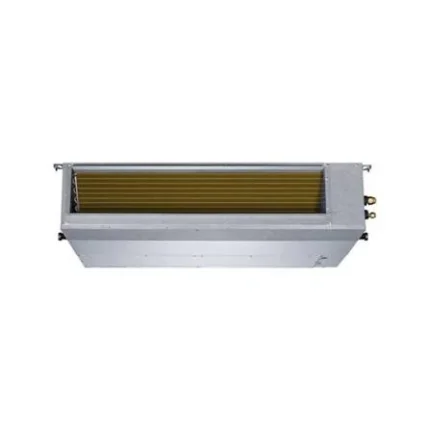

Midea MTI Series Full DC R32 Inverter Ceiling Concealed Air Conditioner
$0.00
The Midea MTI Series is a premium Full DC R32 inverter ceiling-concealed range for ducted light-commercial cooling. Its compact ducted format suits offices, retail spaces, restaurants, meeting rooms and other projects that require discreet air distribution through a designed duct system. Select an available option below.
Description
The Midea MTI Series is a premium Full DC R32 inverter ceiling-concealed range for ducted light-commercial cooling. The indoor unit is hidden above the ceiling, allowing supply and return grilles to be positioned around the room while preserving a clean interior appearance.
Its compact ducted format suits offices, retail spaces, restaurants, meeting rooms and other projects that require discreet air distribution through a designed duct system.
Key features
- Full DC inverter operation adjusts cooling output to match changing room demand.
- A built-in drain pump can raise condensate by up to 750 mm and provides side access for service.
- PrimeGuard anti-corrosion coating protects the heat exchanger against humid and corrosive environments.
- The lightweight, compact A6 indoor chassis reduces ceiling-space and handling requirements.
- External static pressure up to 160 Pa supports a range of concealed duct layouts when correctly designed.
Series details
| System type | Ceiling-concealed ducted split system |
|---|---|
| Compressor operation | Full DC inverter |
| Refrigerant | R32 |
| Nominal capacity range | 12,000 to 60,000 Btu/h |
| Control | Wired controller selected to suit the ducted installation; no built-in Wi-Fi |
Available models
| Horsepower | Indoor model | Outdoor model | Nominal cooling capacity | Power supply | Wi-Fi control |
|---|---|---|---|---|---|
| 1.5HP | MTI-12CRFNX | MOUX-12CFN8 | 12,000 Btu/h | 220-240 V, single-phase, 50 Hz | No |
| 2.0HP | MTI-18CRFNX | MOUX-18CFN8 | 18,000 Btu/h | 220-240 V, single-phase, 50 Hz | No |
| 2.5HP | MTI-24CRFNX | MOUX-24CFN8 | 24,000 Btu/h | 220-240 V, single-phase, 50 Hz | No |
| 3.0HP | MTI-30CRFNX | MOUX-30CFN8 | 30,000 Btu/h | 220-240 V, single-phase, 50 Hz | No |
| 4.0HP | MTI-36CRFNX | MOUX-36CFN8 | 36,000 Btu/h | 220-240 V, single-phase, 50 Hz | No |
| 4.0HP | MTI-40CRFNX | MOUX-40CFN8 | 40,000 Btu/h | 380-415 V, 3-phase, 50 Hz | No |
| 4.5HP | MTI-42CRFNX | MOUX-42CFN8 | 42,000 Btu/h | 220-240 V, single-phase, 50 Hz | No |
| 5.0HP | MTI-48CRFNX | MOUX-48CFN8 | 48,000 Btu/h | 380-415 V, 3-phase, 50 Hz | No |
| 6.0HP | MTI-60CRFNX | MOUX-60CFN8 | 60,000 Btu/h | 380-415 V, 3-phase, 50 Hz | No |
Selection note: Select the capacity, model pair and electrical phase required for the project. A qualified HVAC installer must design the ducts and verify external static pressure, grilles, return air, condensate lift, piping and power supply.
Specifications are based on the supplied Midea project list, official Midea product pages and the supplied Midea catalogue. Confirm the final current specification before ordering or installation.
