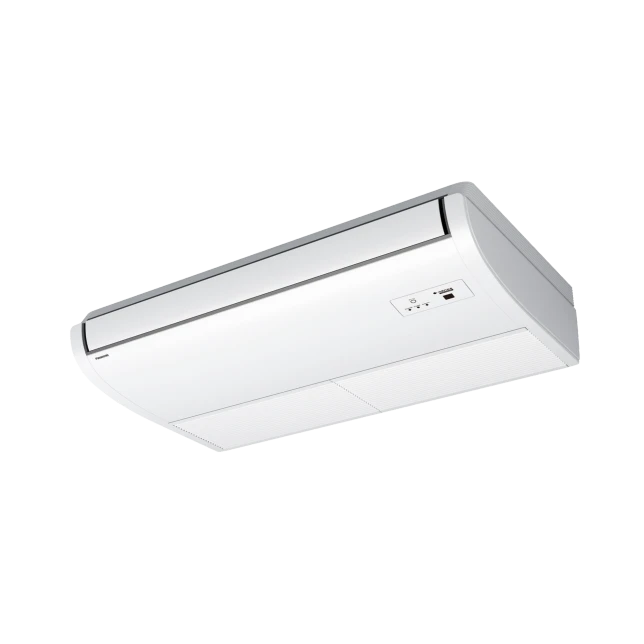

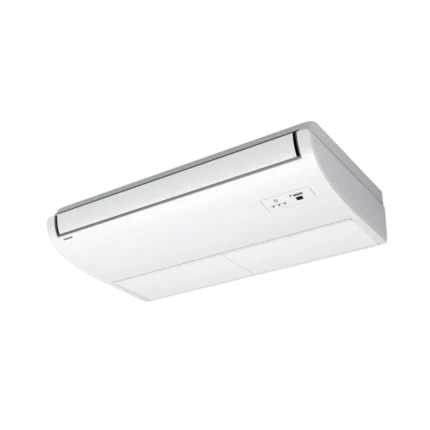

Panasonic NX Standard R32 Inverter Ceiling Exposed Air Conditioner
$0.00
The Panasonic NX Standard R32 inverter ceiling-exposed range delivers long-distance, wide-angle airflow from a slim indoor unit mounted below the ceiling. It is a strong choice for retail stores, restaurants, classrooms, halls, showrooms and offices where a ceiling cassette or ducted system cannot be accommodated. The range combines NX Standard inverter outdoor units with nanoe X Generator Mark2 indoor air treatment and connectivity-ready control. Select the exact capacity and phase option below.
Description
The Panasonic NX Standard R32 inverter ceiling-exposed range delivers long-distance, wide-angle airflow from a slim indoor unit mounted below the ceiling. It is a strong choice for retail stores, restaurants, classrooms, halls, showrooms and offices where a ceiling cassette or ducted system cannot be accommodated.
The range combines NX Standard inverter outdoor units with nanoe X Generator Mark2 indoor air treatment and connectivity-ready control.
What this series is designed to do
The inverter compressor adjusts output as demand changes, while the 235 mm indoor cabinet throws air across the occupied zone. Because the unit remains exposed, filters and service components are accessible without opening a suspended ceiling. CONEX-compatible controllers add scheduling and service functions, and Comfort Cloud can be enabled with the required network hardware.
Key features
- nanoe X Generator Mark2 supports air treatment and deodorisation.
- The slim 235 mm chassis fits close beneath the ceiling.
- Powerful, long-distance airflow reaches across open rooms.
- Inverter operation provides responsive part-load capacity control.
- A stylish exposed cabinet preserves usable floor space and simplifies service access.
- CONEX control and optional Panasonic Comfort Cloud connectivity support modern operation and monitoring.
Series details
| System type | NX Standard ceiling-exposed split system |
|---|---|
| Compressor operation | Inverter |
| Refrigerant | R32 |
| Air-treatment platform | nanoe X Generator Mark2 |
| Control and connectivity | CONEX-compatible; Comfort Cloud connectivity requires compatible controller/WLAN hardware |
| Nominal cooling range | 17,100 Btu/h to 47,800 Btu/h |
Available models
| HP class | Rated cooling capacity | Power supply | Indoor model | Outdoor model |
|---|---|---|---|---|
| 2.0HP | 17,100 Btu/h | Single phase | S-1821PT3H | U-18PR1H5-1 |
| 2.5HP | 20,500 Btu/h | Single phase | S-1821PT3H | U-21PR1H5-1 |
| 2.5HP | 24,200 Btu/h | Single phase | S-2430PT3H | U-24PR1H5-1 |
| 3.0HP | 29,000 Btu/h | Single phase | S-2430PT3H | U-30PR1H5-1 |
| 4.0HP | 34,100 Btu/h | Single phase | S-3448PT3H | U-34PR1H5-1 |
| 5.0HP | 42,700 Btu/h | Single phase | S-3448PT3H | U-43PR1H5-1 |
| 6.0HP | 47,800 Btu/h | Single phase | S-3448PT3H | U-48PR1H5-1 |
| 5.0HP | 42,700 Btu/h | Three phase | S-3448PT3H | U-43PR1H8-1 |
| 6.0HP | 47,800 Btu/h | Three phase | S-3448PT3H | U-48PR1H8-1 |
Choosing the right model
Select the Standard outdoor unit by rated capacity and electrical phase, and confirm that the shared indoor chassis is matched to the exact approved outdoor model shown.
Installation guidance: A qualified contractor should confirm mounting strength, service clearance, airflow direction, pipe and drain routes, controller hardware and electrical supply before installation.
Model availability and specifications can change. Confirm the exact indoor/outdoor combination, electrical supply, controller, accessories and installation requirements before ordering.
