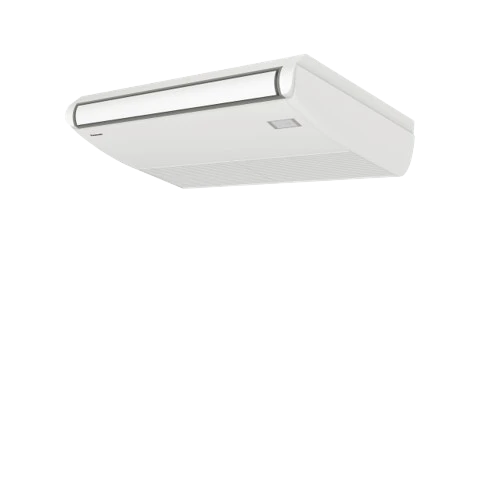

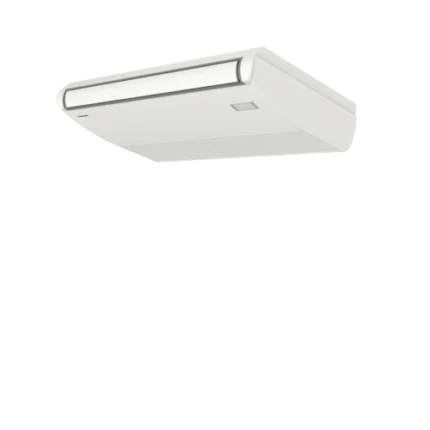

Panasonic Fresh Series R32 Non-Inverter Ceiling and Console Air Conditioner
$0.00
Panasonic’s Fresh Series R32 non-inverter ceiling and console range provides strong, far-reaching airflow from a slim indoor unit that can be installed horizontally below the ceiling or vertically as a console. It is useful where a concealed ceiling cassette is not practical or where service access must remain straightforward. The format suits retail stores, schools, restaurants, halls, showrooms, offices and other open spaces that need wide air distribution without occupying usable floor area. Select the exact capacity and phase option below.
Description
Panasonic’s Fresh Series R32 non-inverter ceiling and console range provides strong, far-reaching airflow from a slim indoor unit that can be installed horizontally below the ceiling or vertically as a console. It is useful where a concealed ceiling cassette is not practical or where service access must remain straightforward.
The format suits retail stores, schools, restaurants, halls, showrooms, offices and other open spaces that need wide air distribution without occupying usable floor area.
What this series is designed to do
The 235 mm-deep indoor cabinet directs conditioned air far and wide, while its dual installation orientation gives designers more freedom around windows, beams and existing ceilings. Matched compact outdoor units use R32 refrigerant and fixed-speed operation for a straightforward light-commercial system.
Key features
- A slim 235 mm indoor profile supports unobtrusive below-ceiling installation.
- Horizontal ceiling or vertical console mounting provides layout flexibility.
- Far and wide airflow helps condition long or open rooms.
- Panasonic Fresh Series controls provide multiple airflow and operating settings.
- A wireless remote controller is supplied; a compatible wired controller can be selected for fixed installations.
- Compact outdoor units allow practical piping and side-by-side placement where site conditions permit.
Series details
| System type | Ceiling-exposed / console split system |
|---|---|
| Compressor operation | Non-inverter / fixed-speed |
| Refrigerant | R32 |
| Air-treatment platform | Fresh Series comfort airflow; nanoe X is not stated for this non-inverter series page |
| Control and connectivity | Wireless controller included; compatible wired controller optional |
| Nominal cooling range | 18,000 Btu/h to 60,000 Btu/h |
Available models
| HP class | Rated cooling capacity | Power supply | Indoor model | Outdoor model |
|---|---|---|---|---|
| 2.0HP | 18,000 Btu/h | Single phase | S-18PTB1H5B | U-18PNB1H5 |
| 2.5HP | 24,000 Btu/h | Single phase | S-24PTB1H5B | U-24PNB1H5 |
| 3.0HP | 30,000 Btu/h | Single phase | S-30PTB1H5B | U-30PNB1H5 |
| 4.0HP | 36,000 Btu/h | Three phase | S-36PTB1H5B | U-36PNB1H8 |
| 5.0HP | 48,000 Btu/h | Three phase | S-48PTB1H5B | U-48PNB1H8 |
| 6.0HP | 60,000 Btu/h | Three phase | S-60PTB1H5B | U-60PNB1H8 |
Choosing the right model
Choose the capacity and phase that match the calculated load and site supply. Decide the horizontal or vertical indoor orientation before finalising pipe, drain and controller positions.
Installation guidance: The installer must verify wall or ceiling structural support, service clearances, airflow throw, condensate routing, refrigerant pipe limits and electrical phase. Do not select only by room floor area.
Model availability and specifications can change. Confirm the exact indoor/outdoor combination, electrical supply, controller, accessories and installation requirements before ordering.
