Panasonic NX Standard R32 Inverter Adaptive Ducted Air Conditioner
$0.00
The Panasonic NX Standard R32 inverter adaptive-ducted range provides concealed cooling with flexible horizontal or vertical indoor-unit installation. It is designed for offices, hotels, retail spaces, restaurants, meeting rooms and other projects that need discreet grilles, controlled air distribution and modern inverter performance. The system pairs NX Standard outdoor units with a slim, high-static indoor platform equipped with nanoe X Generator Mark2 and connectivity-ready CONEX controls. Select the exact capacity and phase option below.
Description
The Panasonic NX Standard R32 inverter adaptive-ducted range provides concealed cooling with flexible horizontal or vertical indoor-unit installation. It is designed for offices, hotels, retail spaces, restaurants, meeting rooms and other projects that need discreet grilles, controlled air distribution and modern inverter performance.
The system pairs NX Standard outdoor units with a slim, high-static indoor platform equipped with nanoe X Generator Mark2 and connectivity-ready CONEX controls.
What this series is designed to do

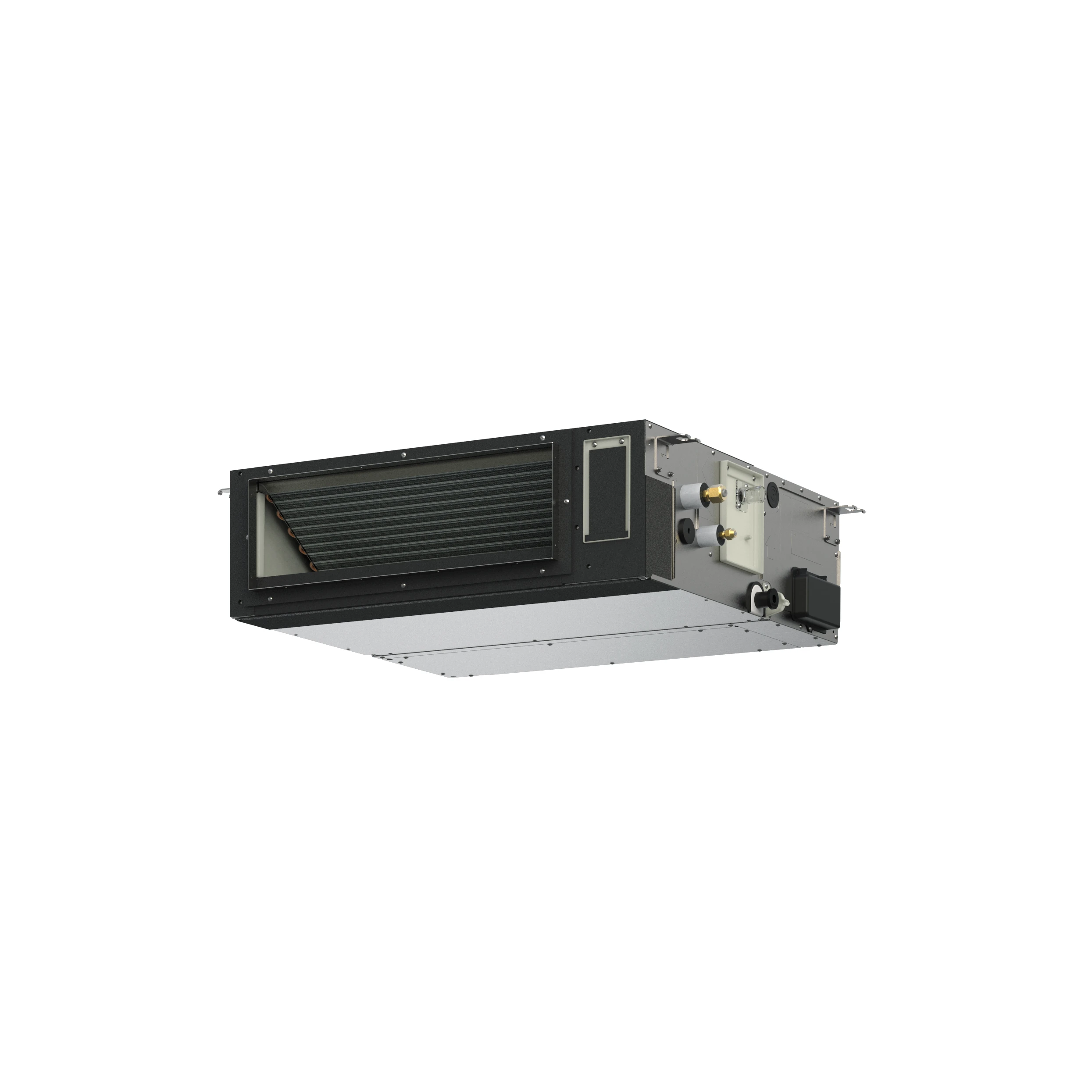

A 250 mm-high indoor chassis supports installation in restricted ceiling spaces and can be oriented horizontally or vertically. Up to 150 Pa external static pressure gives the duct designer useful flexibility, while selectable rear or bottom return-air arrangements help the unit adapt to the available void. Inverter operation adjusts output as the load changes.
Key features
- nanoe X Generator Mark2 supports air treatment in ducted applications.
- The 250 mm indoor height saves ceiling space.
- Up to 150 Pa external static pressure supports practical duct layouts.
- Horizontal or vertical installation increases design flexibility.
- Rear or bottom air intake can be selected to suit the return-air arrangement.
- Low sound levels support offices, hotels and other quiet interiors.
- CONEX and optional Comfort Cloud connectivity enable modern control and monitoring.
Series details
| System type | NX Standard adaptive ceiling-concealed ducted split system |
|---|---|
| Compressor operation | Inverter |
| Refrigerant | R32 |
| Air-treatment platform | nanoe X Generator Mark2 |
| Control and connectivity | CONEX-compatible; Comfort Cloud connectivity requires compatible controller/WLAN hardware |
| Nominal cooling range | 17,100 Btu/h to 47,000/47,800 Btu/h |
Available models
| HP class | Rated cooling capacity | Power supply | Indoor model | Outdoor model |
|---|---|---|---|---|
| 2.0HP | 17,100 Btu/h | Single phase | S-1821PF3H | U-18PR1H5-1 |
| 2.5HP | 20,500 Btu/h | Single phase | S-1821PF3H | U-21PR1H5-1 |
| 2.5HP | 24,200 Btu/h | Single phase | S-2430PF3H | U-24PR1H5-1 |
| 3.0HP | 29,000 Btu/h | Single phase | S-2430PF3H | U-30PR1H5-1 |
| 4.0HP | 34,100 Btu/h | Single phase | S-3448PF3H | U-34PR1H5-1 |
| 5.0HP | 42,700 Btu/h | Single phase | S-3448PF3H | U-43PR1H5-1 |
| 6.0HP | 47,000/47,800 Btu/h | Single phase | S-3448PF3H | U-48PR1H5-1 |
| 5.0HP | 42,700 Btu/h | Three phase | S-3448PF3H | U-43PR1H8-1 |
| 6.0HP | 47,000/47,800 Btu/h | Three phase | S-3448PF3H | U-48PR1H8-1 |
Choosing the right model
Choose the exact Standard outdoor combination by capacity and phase, then design the duct system within the indoor unit’s airflow and external-static-pressure range.
Installation guidance: Heat-load calculation, duct sizing, external static pressure, return-air orientation, grille selection, access panels, drainage, piping and controller/network accessories must be engineered by a qualified HVAC contractor.
Model availability and specifications can change. Confirm the exact indoor/outdoor combination, electrical supply, controller, accessories and installation requirements before ordering.
